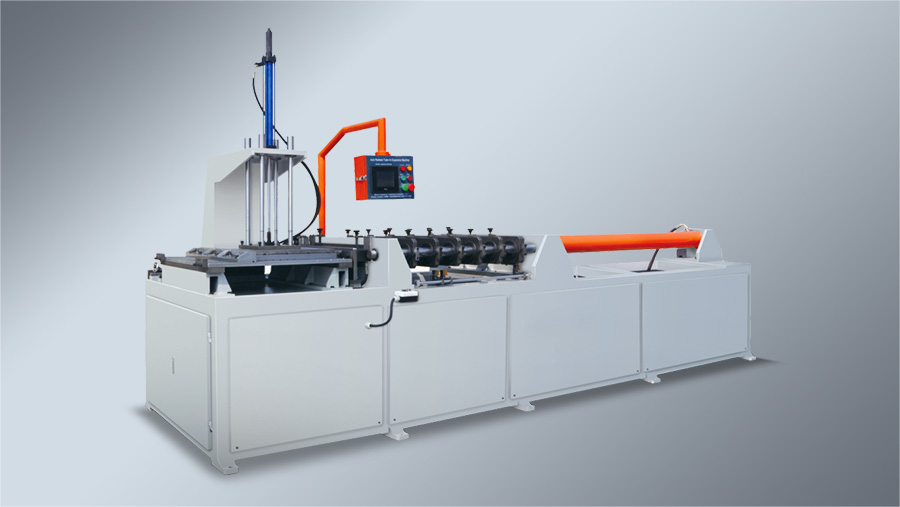

Tube-Fin Expansion Machine

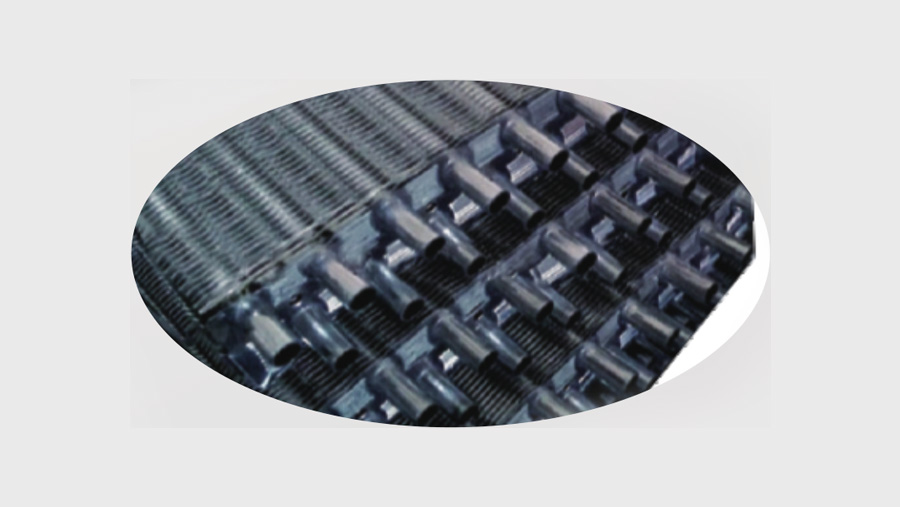

This equipment is to have the aluminum pipe and fin to be assembled together by expanding,suitable for fin-and-tube radiator.
This procedure is done after fin assembly.It can help to realize automation of aluminum pipe expanding process. With characteristics of good in appearance,easy in ope ration and precise in positioning.
|
Description
|
|
Core dimension
|
Core height direction:350-780mm
Core Width direction:200-680mm
|
|
Hole flaring specification
|
as per Customer's requirements
|
|
Pipe Hole Quantity
|
as per Customer's requirements
|
|
Precision Tolerance Range
|
as per Customer's requirements
|
|
Pipe Processed per time
|
1 Set/Cycle
|
|
Production capacity
|
Around 240 Sets/Hour
|
|
Drive mode
|
Servo/Pneumatic Hydraulic/Pneumatic(Optional)
|
|
Overall Dimension
|
4500*1500*1700mm
|
|
Weight
|
2.8 T
|
