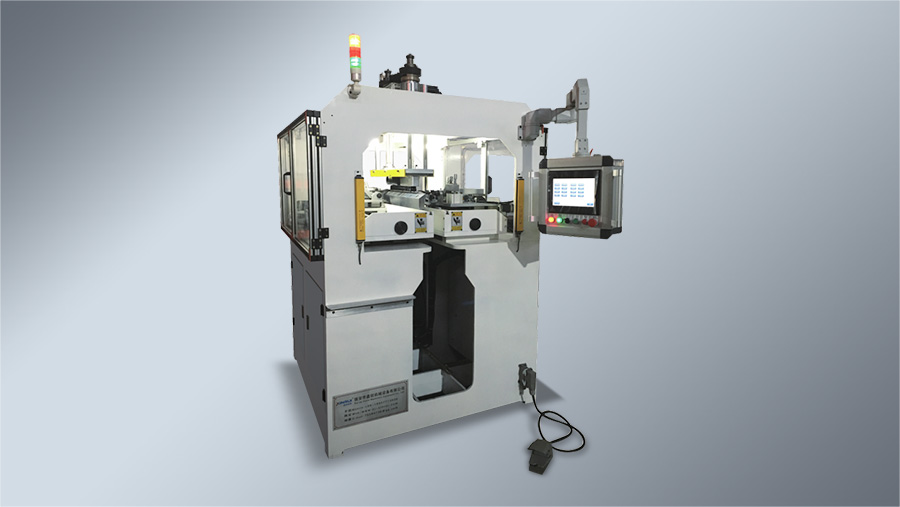

Tank Crimping Machine(Click here to watch video)

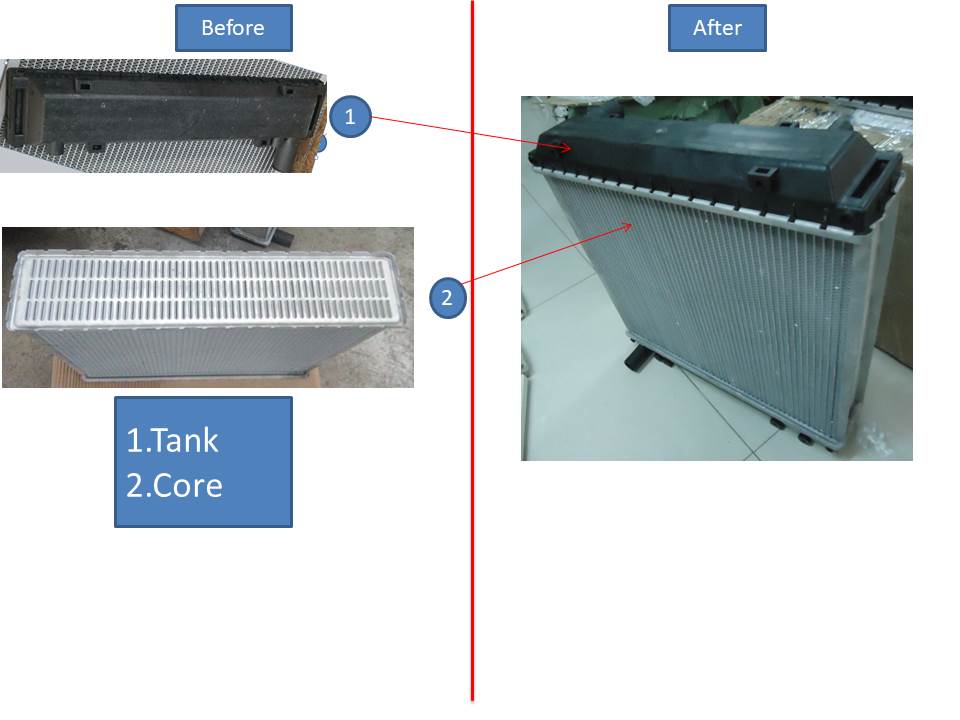

To clinch radiator header plate, gasket and plastic tank together.
It is consisted of long side and short side clinching structure. To clamp header plate teeth firmly on plastic tank edge, so to have the core and plastic tank to be tightly assembled together. Therefore, to create a sealed space between crimped plastic tank and the core.
|
Description
|
|
Workpiece Dimension
|
Core height direction:350-950mm
Core width direction:100-800mm
|
|
Crimping Way
|
Internal
|
|
Machine running time
|
Around 35 s
|
|
Drive Mode
|
Pneumatic/ Servo
|
|
Overall Dimension
|
1800*1300*1900mm
|
|
Weight
|
3.2 T
|
