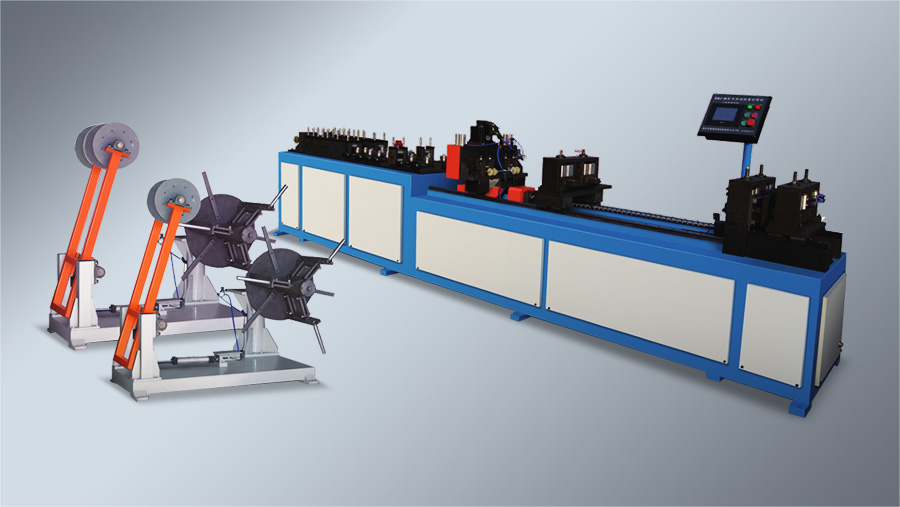

Harmonica Pipe Straightening & Cutting Machine Click here to see video

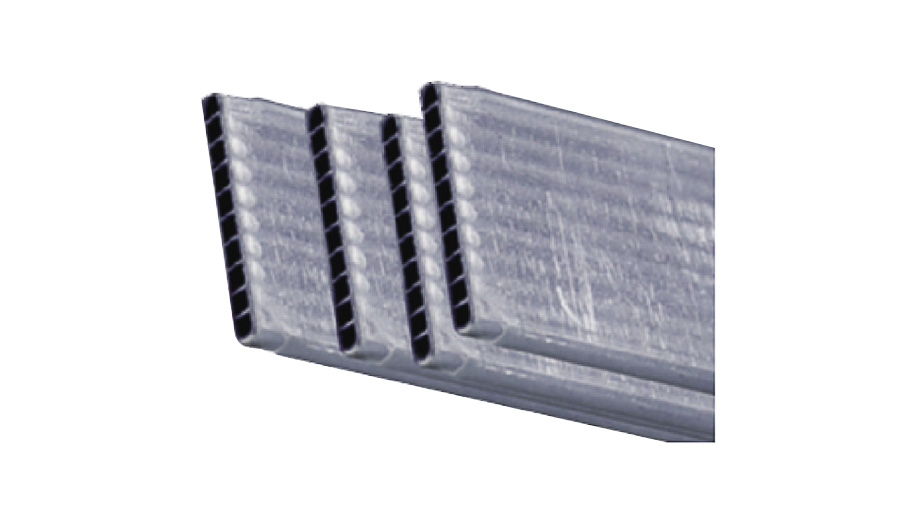

This equipment is to have coiled flat tube to go th rough straightening,correction,cutting,necking down and to be in same dimension automatically.
Machine is fully automatic control.Flat tube cutting lenqth,width can be set and adiusted.Straightening section adopts fast change cassette type to reach fast change.Driving unit is with servo motor together with high precision screw.Cutting is rotary or liner type.Necking down is finished by servo motor and different dimension pipe can be done through changing fast clamp.Sizing cutting is high in precision,fast in speed and easy in operation and cutting Pipe change.
|
Description
|
|
Workpiece dimension
|
Width:12-32mm
Thickness:1-3mm
|
|
Pipe Processed per time
|
2 pcs/time
|
|
Decolling/Feeding
|
Automatic
|
|
Tube necking-down method
|
Automatic/Optional
|
|
Production Capacity
|
Around 44pcs/minutes(Calculated with length 600mm)
|
|
Drive mode
|
Servo+Pneumatic
|
|
Overall dimension
|
Cutting machine:4500*850*1700mm
Decoiler:400*1300*1800mm
|
|
Weight
|
3.5 T
|
